Stretch film rewinding machinery

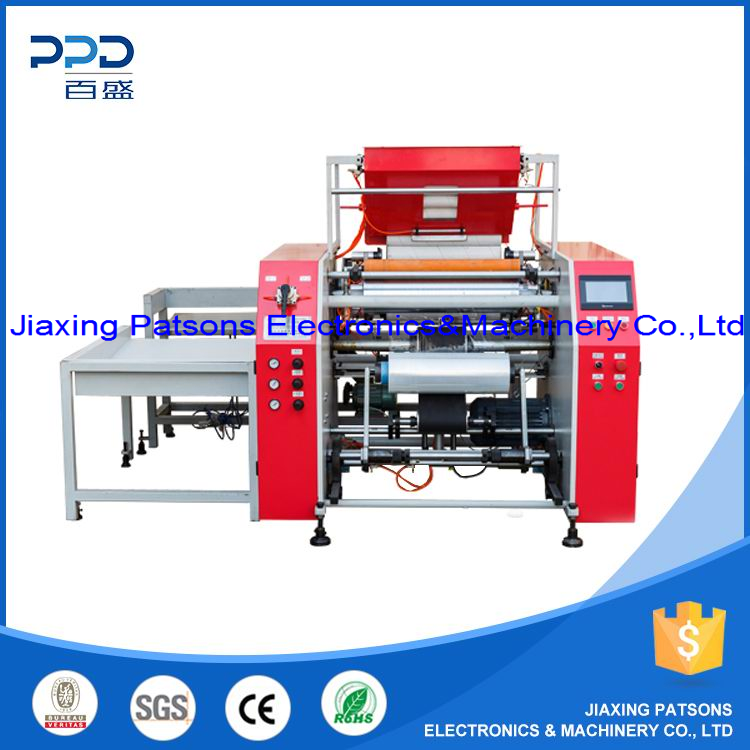

Fully auto high speed 3 shaft stretch film rewinding machine
PPD-3SH500
Fully auto high speed 3 shaft stretch film rewinding machine PPD-3SH500 is newly model for developing of high production of stretch film converting.This model comply with 3 shaft rapid exchange,it can save the paper core loading time by 30 % to 50% production increasing than the conventional model.
The design speed is at maximum 1500 meter per minute,By inverter controlled model,premium length control system,work with the PLC programmer hub,the rewinding length set is very precise and accurate.

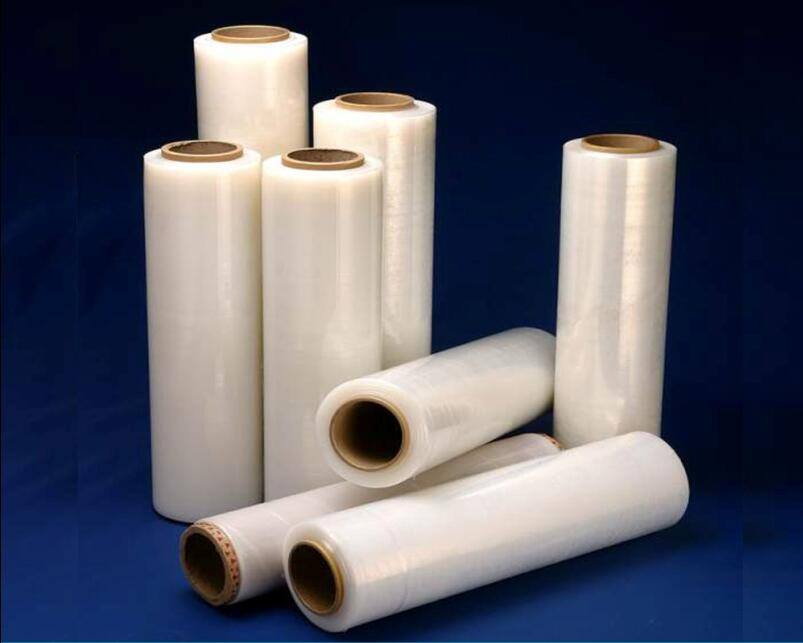

Ideal work for pallet stretch wrap,machine roll stretch film,hand roll stretch film etc.As a extra function,it is ideal for PE stretch food wrap,and PVC cling film rewinding too.
Main parameters:
Material:Stretch film/Cling film
Parent roll web width:500mm/20inch
Parent roll inner core diameter:3inch
Parent roll outer diameter:500mm
Rewind roll width:max 520mm
Rewind roll inner core diameter:1/1.5/2/3inch
Rewind roll outer diameter:maximum 180mm
Design speed:1500m/min max
Total power:4kw
Pneumatic consumption:0.3Mpa
Voltage:220/380/415/450v
Frequency:50&60Hz
Weight:1.1Ton
Note:the differetn web width is available 600mm,750mm etc.
(1).jpg)
VIDEO PRESENTATION:
Fully auto high speed 3 shaft stretch film rewinding machine, 3 turret stretch film roll production machine, 3 shaft stretch wrap rolling machine
