Aluminium foil rewinding machinery
Fully auto aluminum house foil roll rewinding machine
PPD-6SH450
Fully auto aluminum house foil roll rewinding machine PPD-6SH450 model is latest technology frpm Europe,it is deisgned with fully automatic operation from the beginning to the end product.This model is catering the demand of high production,less labor cost.
By 6 shaft automatic changing by non-stop of production the machine,from automatic gluing and starting the rewind,automatic stop when set length reach,automatic changing to next new core,automatic label attaching,automatic delivery to packing area.
The considerate PLC smart program understand the best user friendly operation,the operator only required to press the touch screen for high production.

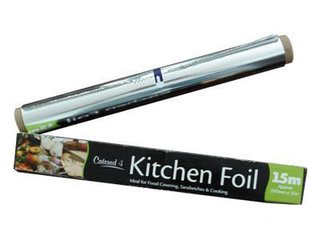

The machine is ideal for rewinding the jumbo roll of aluminium foil into small house foil roll,kitchen foil roll,and catering foil roll etc.
Main Technical Data:
Raw material:Aluminium foil
Parent roll width:maximum 450mm
Parent roll ID:3/6''
Parent roll OD:600mm
Finished roll web width:max 450mm
Finished roll ID:25/35/38/40mm etc
Finished roll length:3-300meters
Total power:3kw
Speed:300m/min max
Air consumption:0.3Mpa
Voltage:220/240/380/415/450v
Note:individual requirement is accepted for a customized machine.
