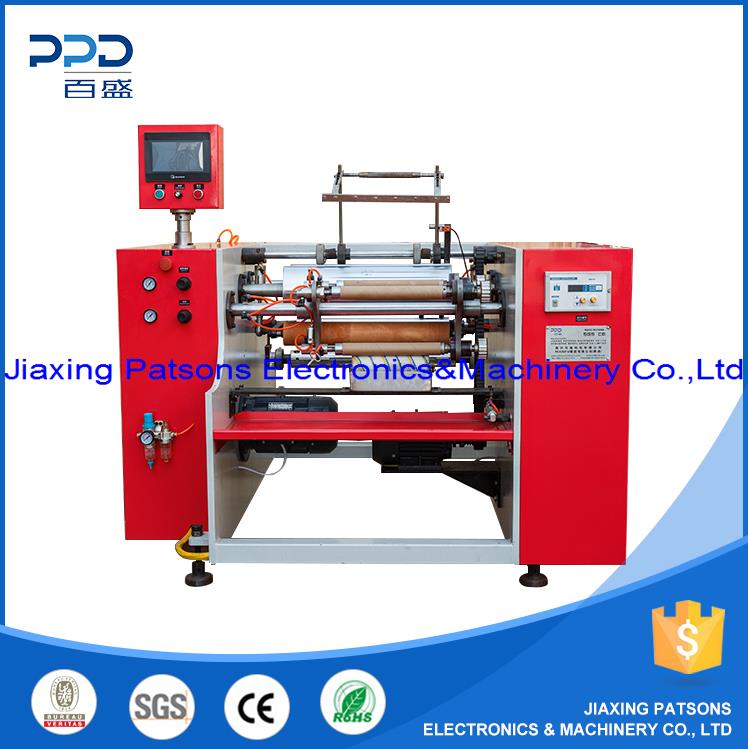

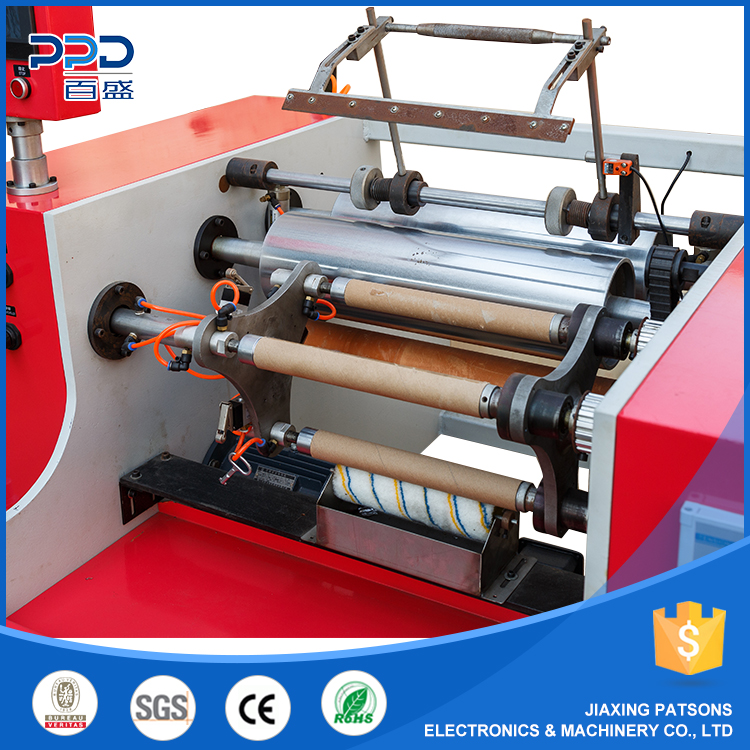

3 shaft Automatic gluing food paper aluminium foil rewinding machine

PPD-3SHPF450

3 shaft Automatic gluing food paper aluminium foil rewinding machine is an multi-functional model for making the finished product of food paper roll,and aluminium foil roll.Includes food wax paper,food silicon paper,PE food wrap paper,baking paper etc,aluminium house foil roll,catering foil roll etc.
The model adopts with centering rewinding method as it is a way for food paper rewinding,the length control is very precise by the meter wheel counting system to co-work with magnetic powder break clutch system with 50N.m.
PLC programmed unit+Touch screen design making the machine operation is very friendly for the operator.
Machine is at very practical price by semi automatic level,but the operation is very automatic.The working process indication as following:
Automatic gluing-Automatic starting rewind-Automatic stop when length set arrives-Automatic unloading--Cutting off the finished roll by top knife-Automatic changing the next new core to rewind.
Main profile:
Name:3 shaft Automatic gluing food paper aluminium foil rewinding machine
Model number:PPD-3SHPF450
Master roll width:max 450mm
Master roll inner core diameter:3 inch
Master roll outer diameter:max 600mm
Rewinding roll width:to master roll
Rewinding roll inner core diameter:25/35/38/40mm etc
Rewinding roll length:2-150meters etc
Production speed:300m/min max
Total power:2.5kw
Air request:0.3Mpa
Voltage:worldwide standard
Note:Any customized requirements are accepted.



Video Presentation:



3 shaft Automatic gluing food paper aluminium foil rewinding machine, 3 turret silicon paper rewinder aluminium foil, 3 shaft food baking paper roll aluminium foil roll winding machinery
