Cling film rewinding machinery

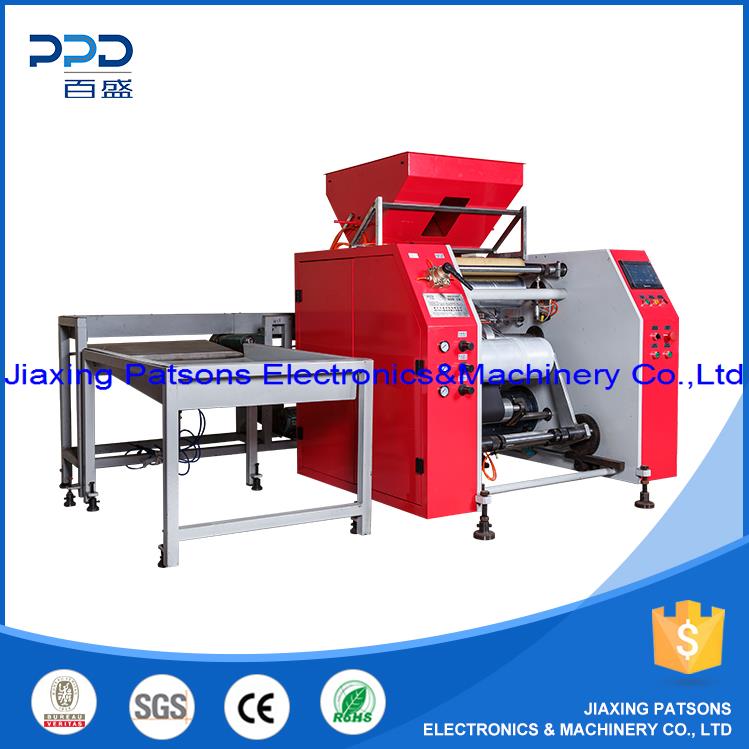

Automatic food cling film rewinding machine
PPD-ACR450
Automatic food cling film rewinding machine PPD-ACR450 is very standard model for re-winding of food cling film from the jumbo roll into small roll.this model can rewind very small roll form 7 meter,50 meters,90 meters,up to 600 meters,900 meters as per buyer different option.it is ideal for covering the all range of food cling film,for consumer roll,catering roll.
By single shaft automatic changing into next new core,the machine is able to reach the design speed at 1500 meter per minute.
PLC+Touch screen design makes the operation is very simple and smart.
Less labor involved in the production.By L shape automatic convey system,operator can work for packing the finished roll at the same time.
By the special design,our machine can work for both casting(extrusion film) film and blown film for PE food stretch wrap film,and PVC cling film.
As value added,this model is able to perfect of rewind PE stretch film for pallet stretch wrap,hand roll,machine roll.
Main profile:
Material:PVC cling,PE stretch
Mother roll width:20inch
Mother roll ID:3inch
Mother roll OD:20inch
Rewind roll width:max 20inch
Rewind roll ID:1/1.5/2/3inch
Rewind roll OD:8inch or option
Speed:1500m/min max
Total power:4kw
Pneumatic air need:0.3Mpa
Voltage:any
Weight;1.05 Ton
