Aluminium foil rewinding machinery

Share to:

Send Inquiry

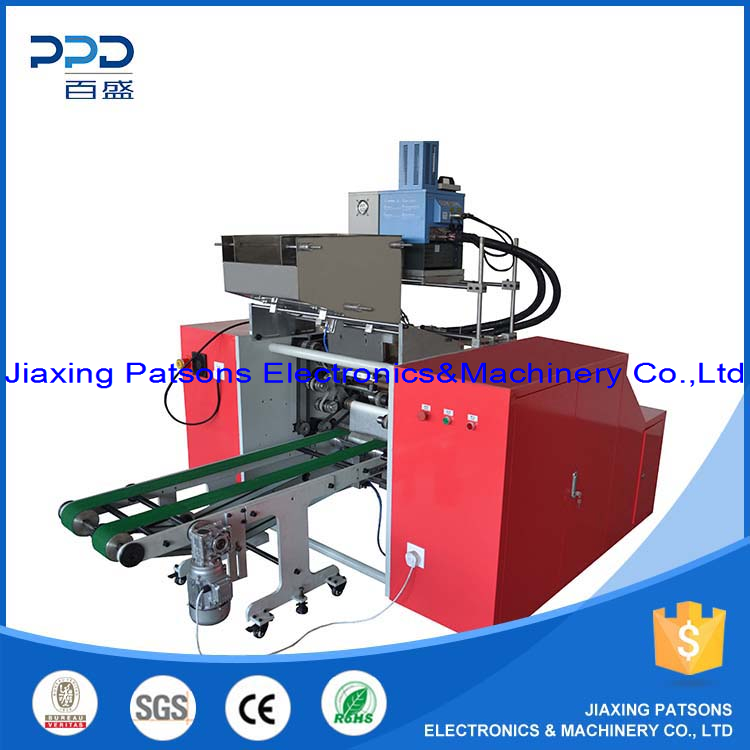

Fully Auto Aluminium Foil Baking Paper Butter Paper Rewinder Machine

PPD-3IN1

Fully auto Aluminium foil baking paper butter paper rewinder PPD-3IN1 is ideal model for multi-functional purpose of surface rewinding the different material of kitchen used material,include aluminium foil,baking paper,butter paper etc.
6 shaft automatic changing without stop-working,it can improve the production rate at 30% than the conventional model.
The automatic labeling attachment device is optional for aluminium foil roll.
The machine use most advanced gluing machine to provide the equal volume of gluing for each roll.
The tension control is automatic adjusting by the mother roll diameter reduced.
Machine adopts most premium quality of meter counting unit,plus the inverter controlled motor,for every finished roll length is very precise at the same length.

Main parameters:
Material:Aluminium foil/baking paper/butter paper
Jumbo roll width:max450mm
Jumbo roll ID:3inch
Jumbo roll OD:max600mm
Rewind roll width:max450mm
Rewind roll ID:25/30/35/38mm etc
Rewind roll length:max300meters
Design speed:300m/min max
Total power:5kw
Voltage:220/240/415/440/450v
Pneumatic required:0.3Mpa



Fully auto Aluminium foil cling film baking paper rewinder, aluminum foil silicon paper cling film rewinding machine, cling film food wax paper aluminium hosue foil roll winding machine
