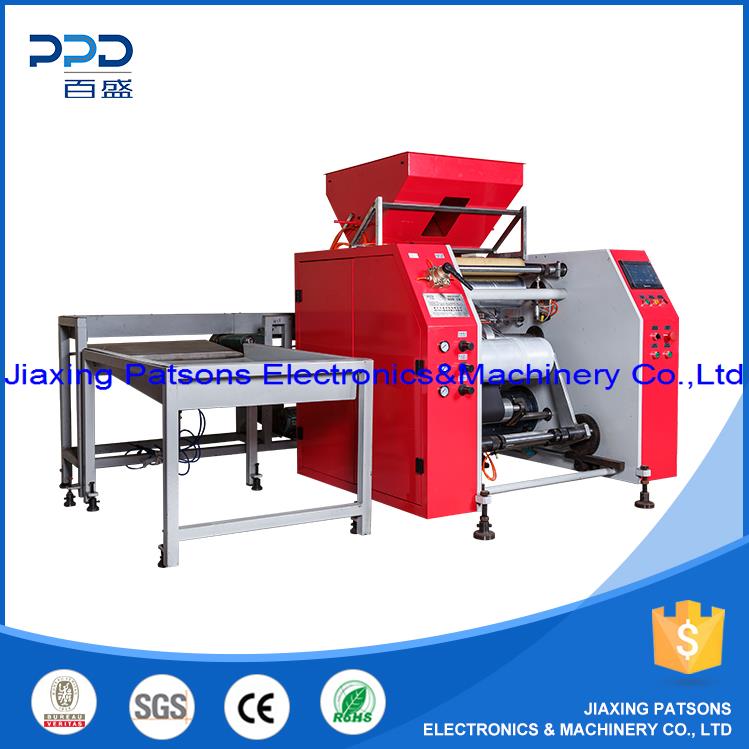

High speed automatic stretch film rewinding machine

PPD-HARW500

High speed automatic stretch film rewinding machine PPD-HARW500 is developed based on the model of PPD-ARW500.
The design production speed is much higher at 1500m/minute.This model is designed with many detailed smart movement according to improve the user experiences level.

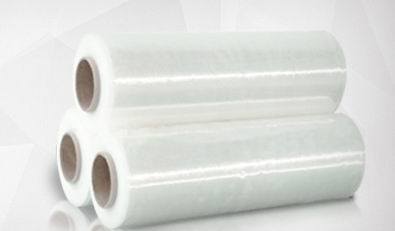

Machine is ideal for multi-functional for different material of stretching film,include PE stretch film,LLDPE stretch wrap,LDPE stretch,PVC cling film etc.
Since the PLC is improved as much as we can,the user only with with most simple operation required.
this model of machine does not required skilled operator to work with.Maximum one operator can run 3 to 4 machines at the same by sharing the automatic convey system.
Details profile:
Name:Stretch film rewinding machine
Model:PPD-ARW500
Raw material:stretch film
Mother roll ID:76mm/3''
Mother roll OD:500mm
Mother roll width:500/600mm
Rewinding roll width:500/600mm
Rewinding roll ID:1/1.5/2/3''
Rewinding roll length:max to 1200meter
Design speed:1500m/minute
Total power:4.37kw
Pneumatic supply:0.2Mpa
Voltage:220/380/415/450volt
Frequency:50&60Hz
Weight:1150kg
