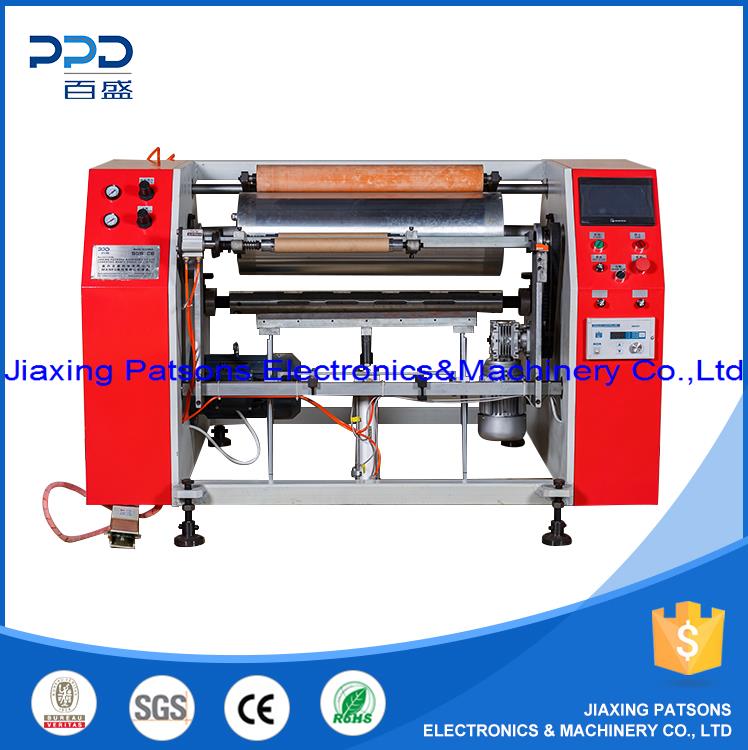

Semi automatic aluminium foil cling film rewinding machine

PPD-SRAC600

Semi automatic aluminium foil cling film rewinding machine PPD-SRAC600 is designed for catering the demand for 2 in 1 rewinding of aluminium foil,and food cling film.
This model is adopted surface rewinding method,it is able to rewind the roll length form 3 meter to 300meters or more as per requires.
Machine is with endurable magnetic clutch system for ensure the length control together with meter counter system.The tension control is automatic after the et up when start the operating.
The operation method is simple as by only click in the touch screen page,the input the required data only.This model of machines designed for premium quality of electrical control system by only selected import top brand to secure the heavy duty daily production.
Main parameters:
Name:Semi automatic aluminium foil cling film rewinding machine
Model:PPD-SAAC600
Material:foil and cling film
Master reel width:300,450,600mm
Master reel ID:3/6inch
Master reel OD:600mm
Baby roll width:same to master reel
Baby roll ID:25/35/38/40mm
Baby roll length:3-300meters
Design speed:300m/minute max
Total power:2.5kw
Air requirement:0.2Mpa
Weigth:800kg
Voltage:220/380/415/450v



Semi automatic aluminium foil cling film rewinding machine, aluminium foil winding machine, aluminium foil food cling film winder
