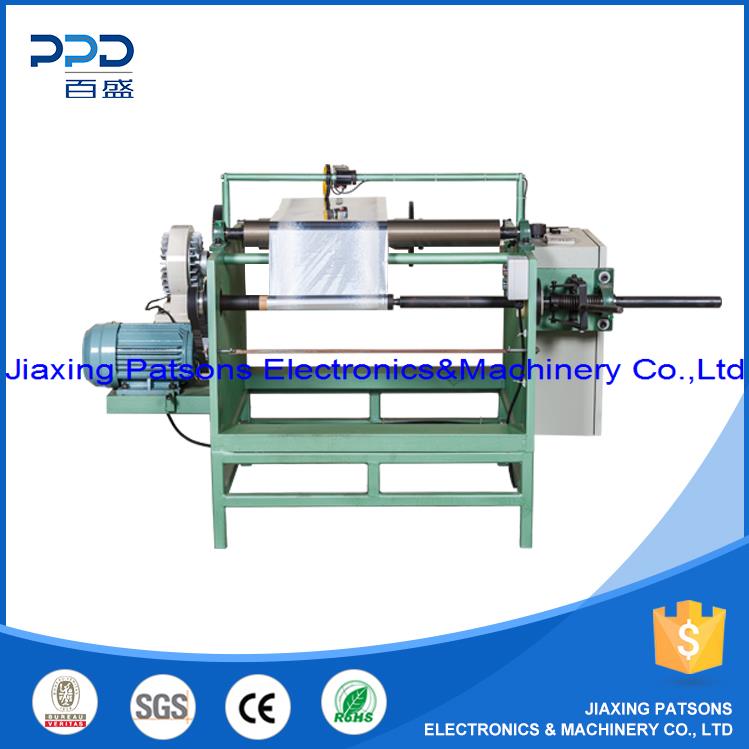

Manual single shaft aluminium foil rewinder

PPD-MAFR450

Manual single shaft aluminium foil rewinder PPD-MFRE450 is very compact model for low investment,but very high speed,and user friendly,suit for heavy duty production.
It is at 450mm width for maximum,it suits for 300,450mm etc for below 450mm width.we also can make the machine width at 600mm for some buyer requirement.
This model is mechanical method,there is no air requires.By centering rewinding method,the rewind roll length is form 3,7,50 and up to 300 meters etc.
Main specification:
Unwinding roll max width:450mm
Material thickness:5-18micro
Unwinding roll outer dia:600mm
Unwind core ID:3/6''
Rewind core ID:35/38/40mm（option）
Rewind roll length:3-300m
Megnic Tension control:50N.M
Speed:Maximum 300meter/minute
Total power:2.2kw
Voltage:single phase 110-240v,3 phase 220-450v
Machine Dimension:1280x1200x1050mm



Manual single shaft aluminium foil rewinding machine, manual aluminium foil rewinder, household foil roll winding machine
