Stretch film slitting machinery

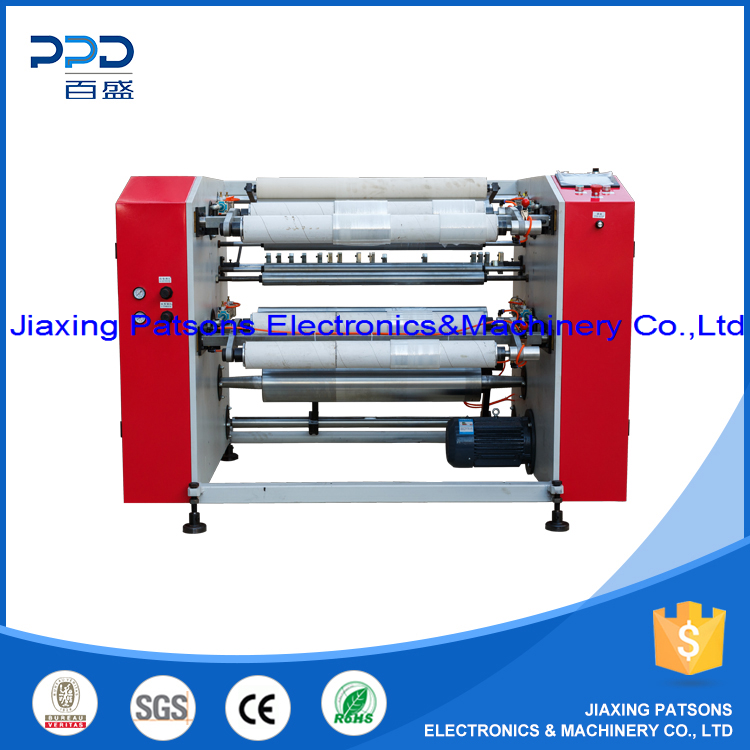

4 shaft automatic change stretch wrap slitter rewinder
PPD-4SH500

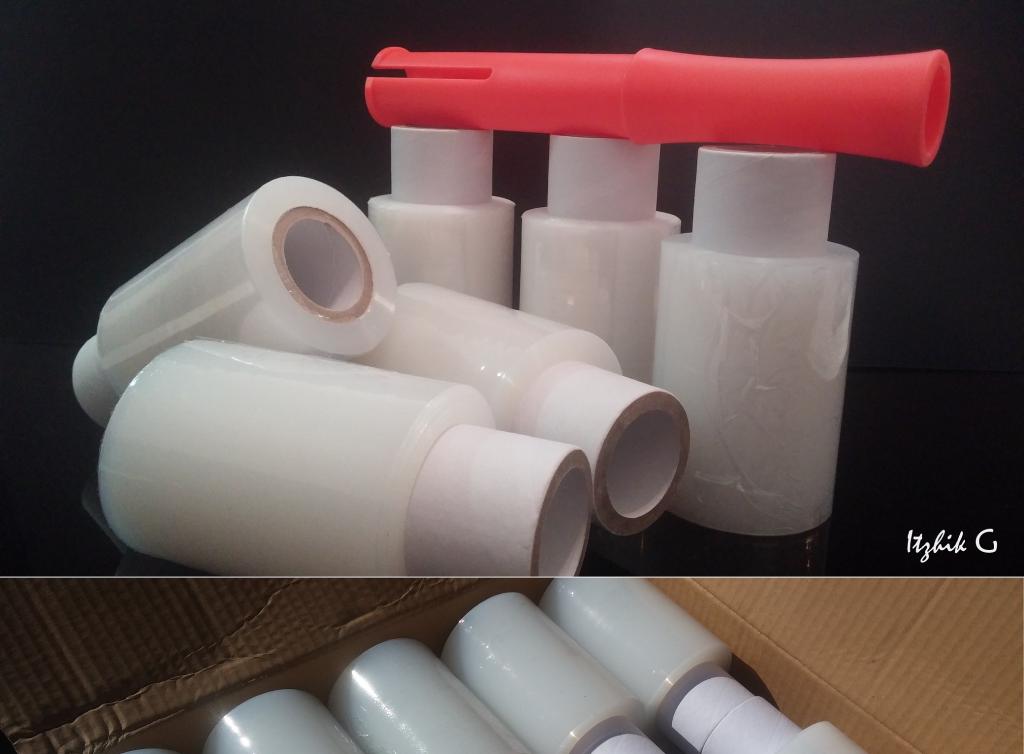

4 shaft automatic change stretch wrap slitter rewinder PPD-4SH500 is developed model for high speed production of bundle stretch wrap,banding wrap roll from the jumbo roll of stretch film.Machine is with the special features for rapid changing of rewinding shaft,it can save the shaft changing time to improve the production speed.

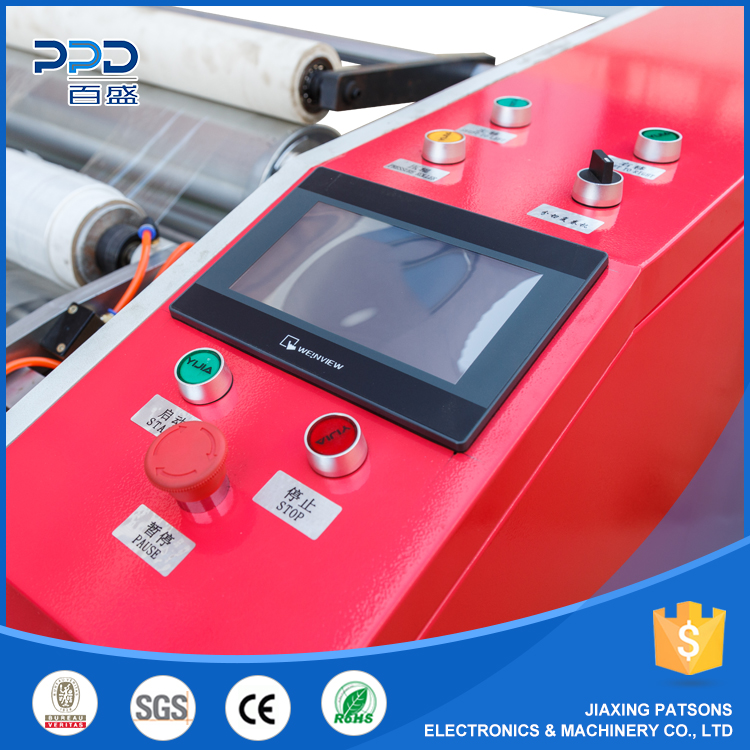

Machine designs at 650 meter per minute for high speed production,the operation is very simple via input the data in the touch screen only.
The control system is by PLC hub for very uder friendly with world top brand premium quality to ensure heavy duty production endurable.
Machine is ideal to slit the PVC wire protection wrap film too,and PE food stretch wrap,PVC cling film etc.
Main data:
Name:4 shaft automatic change stretch wrap slitter rewinder
Model:PPD-4SH500
Material:Stretch film
Master reel max width:500/600/770/1000mm
Master reel ID:76mm
Master reel OD:500mm
Baby roll width:50-max width
Baby roll ID:1.5/2/3inch
Baby roll OD:max300mm
Speed:max 650m/minute
Power:2kw

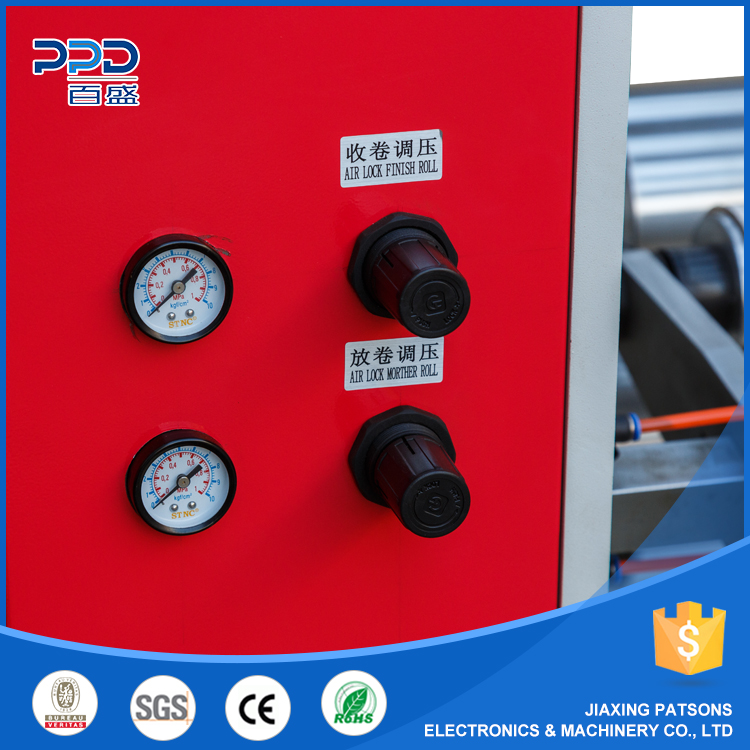

Pneumatic need:0.2Mpa
Voltage:220/380/415/450v
Note:The width 500,600,770,1000mm is for different model,all different width are available.
