Cling film rewinding machinery
Full-Servo Controlled Automatic 5 Shaft Cling Film Perforation Rewinder
PPD-5SCPR300
Full-servo controlled automatic 5 shaft food cling wrap perforation rewinder adopts full servo control,5 shaft exchange,infinitely improves the working efficiency.It works with touch screen and PLC control,together with inverter control for simple operation.
Features:
1.The tension of jumbo roll is controlled by servo motor,machine running more stable.
2.High speed and high efficient, maximum at 700m/min,it can rewind 10-12 rolls for length 30m rolls per minute.
2.Automatic perforation function,the product roll is with dotting line to easy tear off.

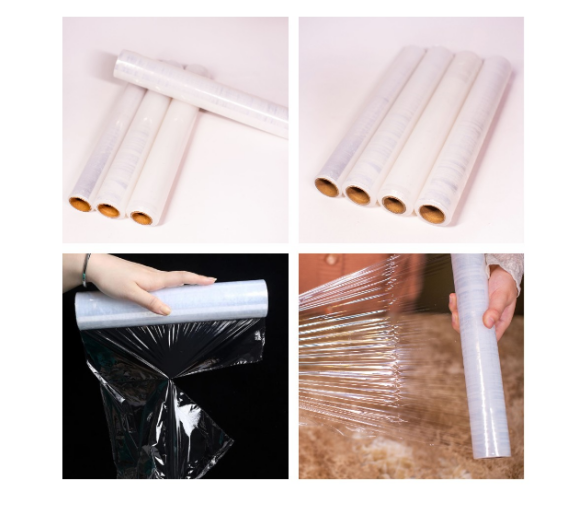

3.Suitable film:PVC cling film,PE cling film,food PE stretch film etc.
Main Data：
Name:Full-Servo Controlled Automatic 5 Shaft Cling Film Perforation Rewinder
Model:PPD-5SCPR300
Mother roll width:300mm
Mother roll outer diameter:OD:max 400mm
Rewind roll width:300mm
Rewind roll inner diameter:30/35/38mm option
Rewind roll length:max150m or as customized
Design speed:max700m/min
Voltage:220/380/415V,50Hz (option)
Packing Size:1550*1490*1710mm
Weight:980kg
