Aluminium foil rewinding machinery

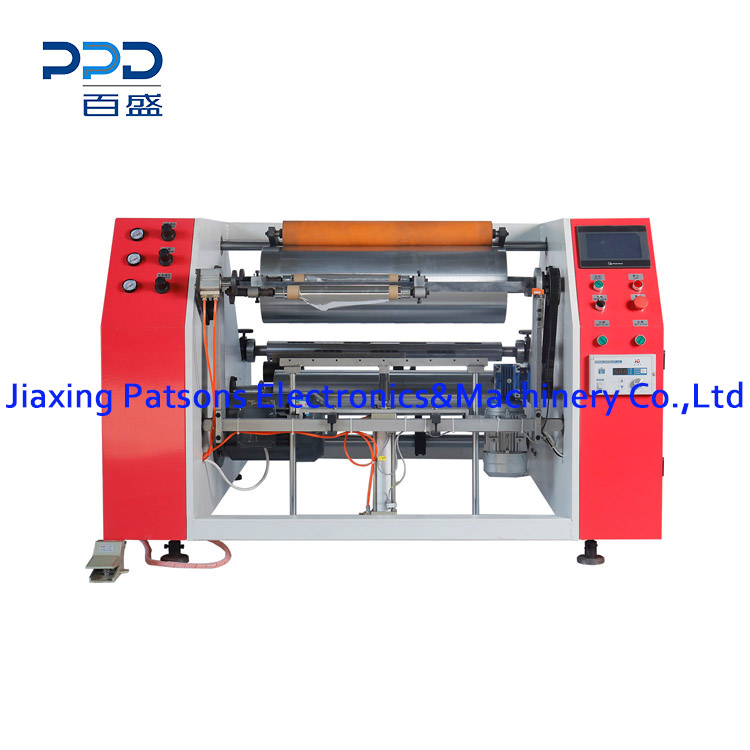

Aluminium Foil Cling Film Baking Paper Stretch Film 4 In 1 Rewinder

PPD-FCBSR500

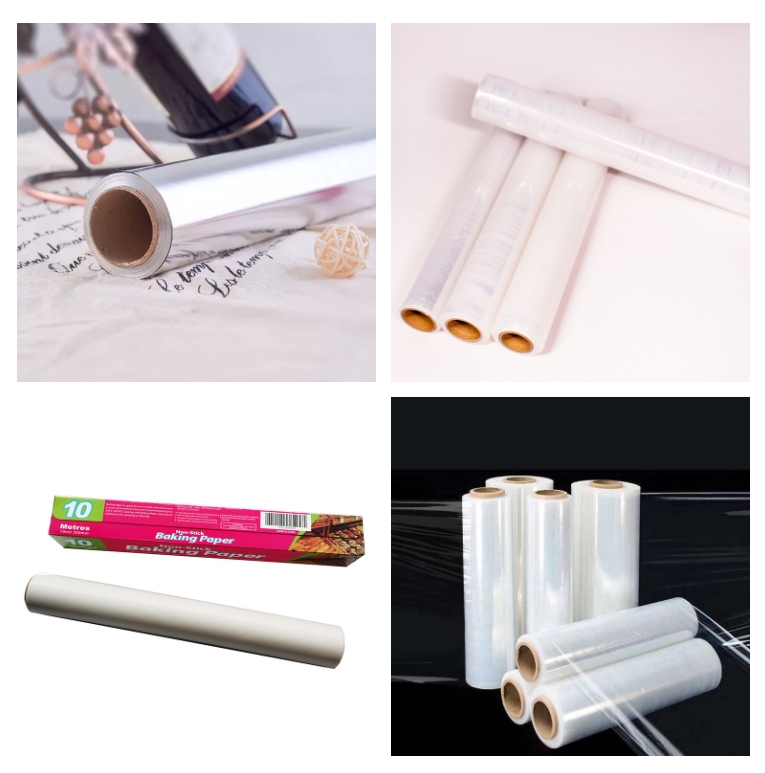

Aluminium foil cling film baking paper 4 in 1 rewinder is a multi-functional model for rewinding of aluminium foil, cling film, silicon paper,stretch film 4 totally different materials into small roll.The product roll length can set from 2 meter to 300meter as customers' individual needs.

Features:
1.Machine works 2 shaft exchange,touch screen +PLC+inverter control system, easy to operate.
2.air expansion shaft + magnetic powder tension control, can ensure the appearance of finished products smooth.

 Main Data:

Name:Aluminium Foil Cling Film Baking Paper Stretch Film 4 In 1 Rewinder
Model:PPD-FCBSR500
Jumbo roll width:max500mm
Jumbo roll core diameter:3inch
Jumbo roll OD:max600mm
Rewind roll width:max500mm
Rewind roll core diameter:35/38/40mm or as customized.
Rewind roll length setting:2-300meters option
Speed:max150m/min
Total power:2.2kw
Voltage:220/380/415V,50Hz option
NOTE:Different sizes can be customized.

Household Foil Rewinder, Cling Film Stretch Film Rewinder, Silicon Paper Rewinder
