Cling film rewinding machinery

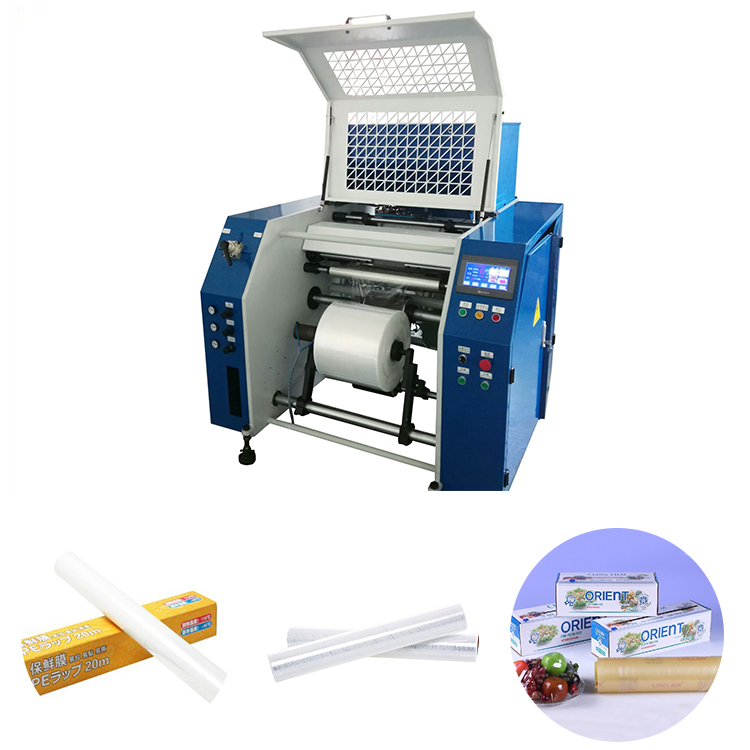

High Speed Safety Automatic Slitting And Rewinding Machine
PPD-CF300
High speed rewinder for cling film is our new model for very high speed rewinding production of food cling wrap film.it is working for both PVC cling film and PE food stretch wrap film.The machine designed for 5 turrets changing for paper core.it is with non-stop rewinding when changing the paper core.it can improve the production 30% higher than the previous model.At the production,it can easily making 12-14 rolls per minute for consumer roll length set at 20-30meters.
The machine is with option for perforation line device,it can make the tearing off for the film easily from the roll withour a plastic blade cutter.
With the most smart device program in this machine,it only requires one operator for loading paper core,and collecting the ready products from the convery to pack into box.
Marterial | PVC/PE food clign wrap |
Master reel width | max450mm |
Master reel inner core diameter | 3inch |
Master reel outer diameter | max 500mm |
Product width | same to mother reel |
Product inner core diameter | 30/35/38/40mm etc |
Product length set | 10-200meters |
Speed | max 14rolls/minute |
Power request | 4.5kw |
Air request | 0.2Mpa |
Voltage | 220/380/415/450v |
Packge | Packing in standard export wooden case |
Delivery | Shipped in 30 days after payment |
