Aluminium Foil Container Machine

PPD-63T
Fully automatic kitchen foil tray making is a fully auto production line for production of aluminium foil container,aluminium foil tray,aluminium foil dish,aluminium foil plates etc foil products.

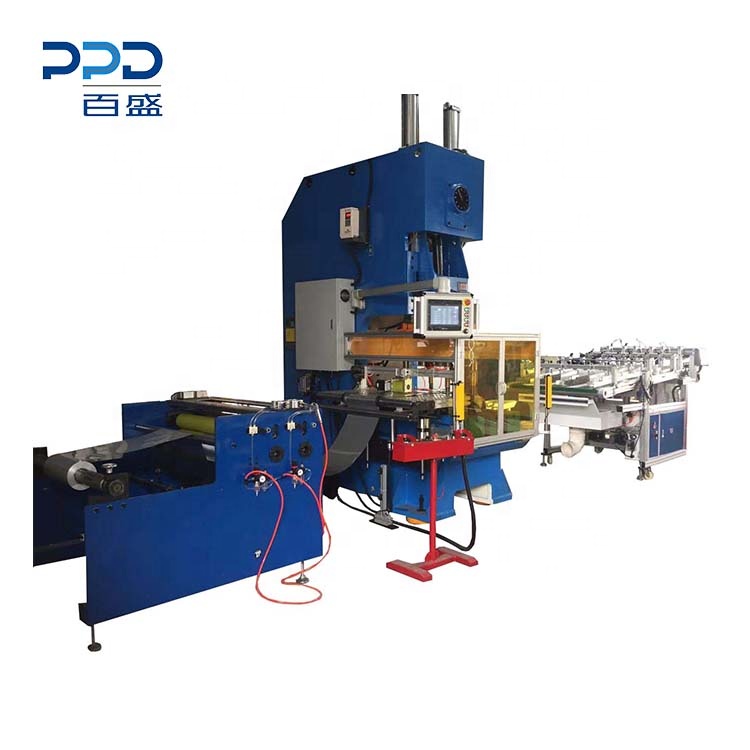

The complete production line is consist of 4 parts, aluminium foil feeding machine,high accurary press machine,aluminium foil punching mould and auto stacker.

 Fully Automatic Kitchen Foil Tray Making Machine

                                                            Model:PPD-A63T



I.Aluminium Foil Feeding Machine:

                             Lubrication function

               Automatic equal oil coating design

                    with no weinkle trouble

Max feeding width of aluminium foil roll 880mm
Max diameter of aluminium foil roll 1000mm
Effective length of feeding roll 900mm
Aluminium foil roll inner diameter 76mm or 152mm option
Tension control  Electric Magnetic Brake 100NM
Feeding system  Servo System
 Feeding speed 0-500m/min
 Feeding length&precision  +0.1 mm
Power  1.5kw

II.High Accuracy Press:



                                          Press Model                          63T
Nominal pressure 630KN
Slide block stroke 180-260mm
Slide stroke speed 35-90pcs/min
Range of mould height 340-420mm
Max size of mould 1100x900mm
Weight 8800kgs
Power 11kw
Dimension 1500x2200x3500mm





III.Punching Mould


Aluminium foil thickness 0.03-0.35mm
Aluminium foil container shape Round,square,heart etc
Aluminium foil container color Silver,gold,red etc
Aluminium foil container size as customized





IV.Auto Stacker:



                                           Model                                AS-800
Lane quantity 3lanes
Belt width 900mm
Belt height 850-1200mm
Min container dimension 120*120mm

Max container dimensions

Top out size(LxW)

800*400mm(1 lane)

400*400mm(2 lanes)

250x400mm(3 lanes)

Max height of stacking  400mm
Power 1.2kw

Fully Automatic Kitchen Foil Tray Making Machine , aluminum foil BBQ tray dish container machine, restaurant take away food container bowl making machine
