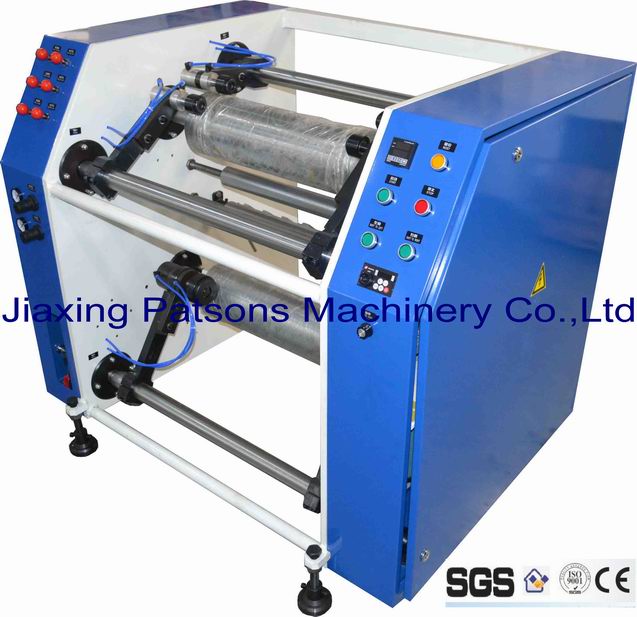

Stretch film slitting rewinding machine

PPD-2SHSR500

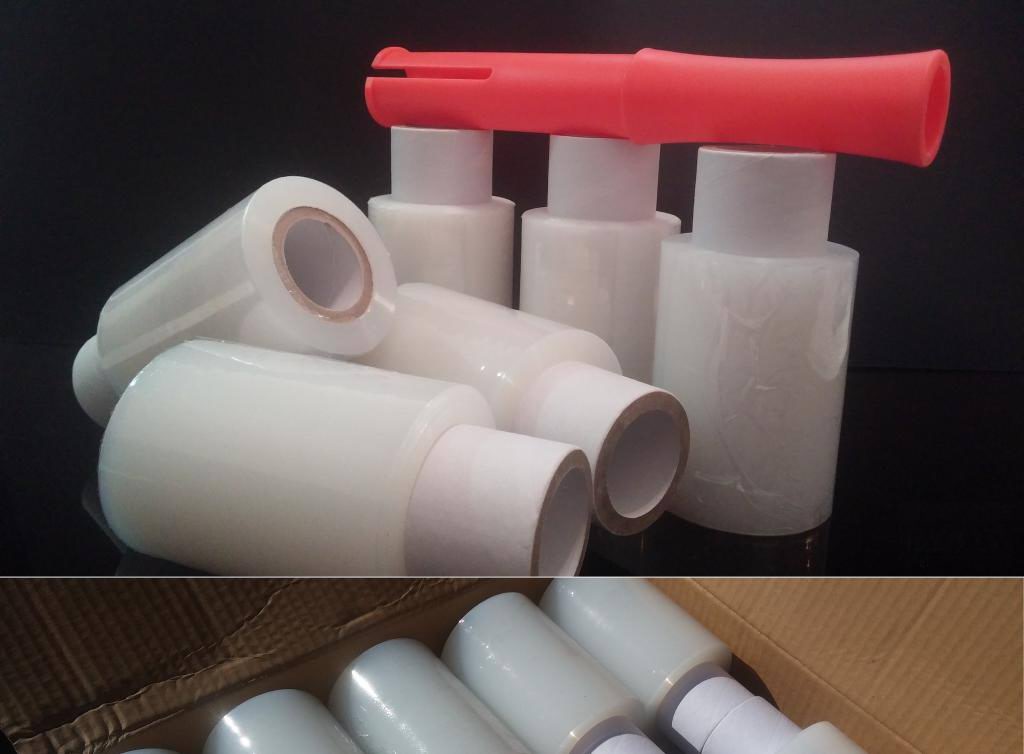

Stretch film slitting rewinding machine is ideal model for making the stretch wrap baby roll,and mini roll.
This machine designed with 2 shaft rewinding,by changing the different diameter of shaft,machine can adopt the 1.5'',2'',3''.and 1'' paper core size.
With mutli-functional needed,the model is able to work as high speed rewinding machine too without any setting requires.
Motor speed control is by world top brand of inverter,the meter counter system is top brand to ensure the length control is at very precise.
Machine can slit to the different width of the baby roll 50mm,100mm,150mm etc.It can work with both extruding film,and blown film for LDPE,LLDPE,PE stretch film.and also for pvc cling film,pvc wire wrap protection film etc.
Main data:
Name:Stretch film slitting rewinding machine
Model:PPD-2SHSR500
Material:Stretch film
Unwinding roll width:500/600/750/1000/1500mm
Unwinding roll ID:3''
Unwinding roll OD:500mm
Baby roll width:50mm to max
Baby roll ID:25/38/50/76mm
Baby roll OD:300mm
Speed:650m/min
Power:1.5kw
Pneumatic request:0.2Mpa
Voltage:world standard
Weight:700kg
