Stretch film rewinding machinery
Stretch film rewinding machine
PPD-ARW500
Stretch film rewinding machine PPD-ARW500 is originally Europe rewinding technology,Patsons developed it in further for R&D for the user experience degree.Machine design with speed 1000 meter per minute.it is with latest PLC technology for center control,the operation is only required for touch screen pressing.It is very simple for production.

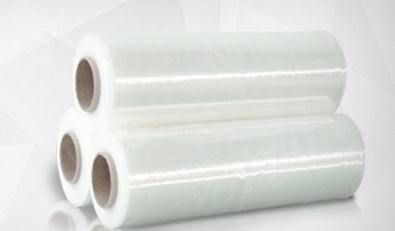

Machine is suitable for casting film and blown film for pallet stretch wrap,industrial stretch,machine stretch roll,hand stretch roll etc.
Our company is with very experienced international R&D team,and the production management is pass SGS and BV audit as 3rd Party Audited Supplier.
This machine pass CE certificate,and ROHS certificate for EU market standard.
Main parameter:
Name:Stretch film rewinding machine
Model:PPD-ARW500
Raw material:stretch film
Mother roll ID:76mm
Mother roll OD:500mm
Mother roll width:500/600mm
Rewinding roll width:500/600mm
Rewinding roll ID:2/3''
Rewinding roll length:max to 1200meter
Design speed:1000m/min
Total power:4.37kw
Pneumatic supply:0.2Mpa
Voltage:220/380/415/450volt
Frequency:50&60Hz
Weight:1050kg
