Aluminium foil rewinding machinery

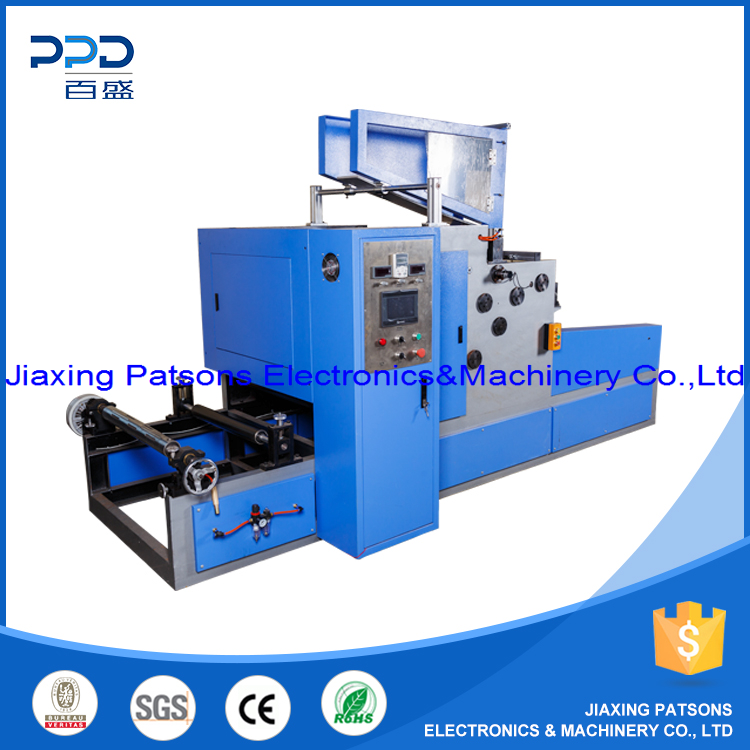

Automatic 4 shaft aluminium household foil roll production machine
PPD-AARW450
Automatic 4 shaft aluminium household foil roll production machine PPD-AARW450 isfully auto model for production small length of foil roll of kitchen foil use purpose.Brief Components:
1. Automatic Feeding
2. UV sterilization light include
3 Automatic paper tube gluing
4.Automatic paper tube loading/uploading
5.Finished foil roll convey belt
6.Siemens PLC+Touch screen
Detailed Specification :
1.Thickness of raw material: 5-15micro
2.Width of raw material: 100-450mm
3.Maximum unwinding diameter: 600mm
4.Inner diameter of parent roll core: 3/6inch
5.Inner diameter of finished product roll core: 25/35/38/40mm etc
6.Finished roll length: 2m--150m
7.Production efficiency based on length of roll.
8.Unloading magnetic powder brake clutch: 25N.M
9.Winding magnetic powder break clutch: 12N.M
10.Machine dimension: 4000*1350*1710mm
11.Total power: 4KW
12.Air pressure consumption: 0.5 Mpa
(provided by the customer)
13.Weight of complete machine: 1.5ton
Video Presentation:
Automatic aluminium foil rewinder, 4 shaft automatic aluminium foil roll production machine, aluminium household foil roll production line
