Printing press machinery

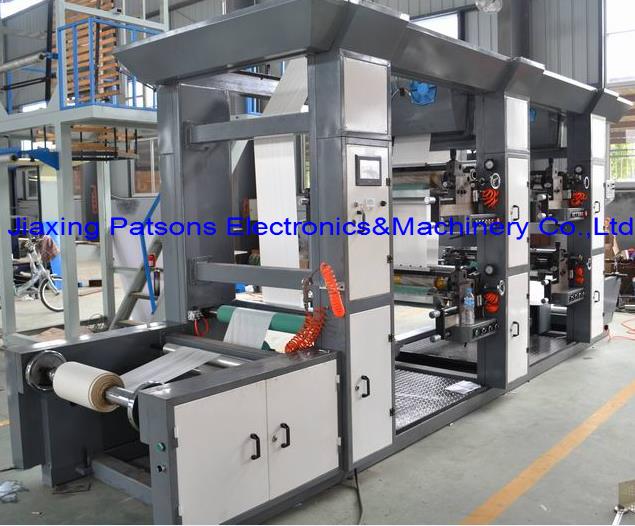

Thermal paper flexo printing machine
PPD-TP700
THERMAL PAPER FLEXO PRINTING MACHINE PPD-TP700 IS DEVELOPED BASED ON THE LATEST GERMAN PRINTING MACHINE TECHNOLOGY.IDEAL FOR HEAVY PRINTING THE HIGH PRECISION REQUIREMENT FOR THERMAL PAPER,BOND PAPER,LABEL,PE FILM,PLASTIC FILM,NON-WOVEN ETC MATERIAL,HIGH SPEED,HIGH DEFINITION FOR HIGH QUALITY PRINTING REQUIREMENT.
COMPLETE WITH PLC MAN-MACHINE INTERFACE COMMUNICATION PROGRAM,TOUCH COLOR SCREEN FOR USER FRIENDLY.
AUTOMATIC TENSION CONTROL FACILITY,AUTOMATIC EPC DEVICE FOR AUTOMATIC RECTIFY THE EDGE POSITION.
THIS MACHINE IS COMPLETED WITH TURN BAR FUNCTION TO BE ABLE TO PRINT ON THE BOTH SIDE OF MATERIAL(OPTION BY REQUEST).
MACHINE ADOPTS CERAMIC ANILOX ROLL AND SCRAPING KNIFE（EACH COLOR FOR ONE UNIT）,IT CAN ASSURE TO HAVE GREAT HIGH DEFINITION PRINTING RESULT.
BRIEF FEATURES:
Raw materials maximum roll width - 700mm
Max printing width – 650mm
Maximum printing length - 191 to 910mm
Maximum roll diameter- 800mm
Maximum running speed - 10 to 80 M per minute
Precision of printing plate-0.3mm
Paper requirement:30-300gsm
Diameter of rubber plate:75-350mm
Electrical Power - 17kw
Weight of Machine (net)- 4000Kg
Machine dimension (L x W x H) - 5800 x 1600 x 2400mm
Packing for shipment- In sea-worthy wooden crate
thermal paper flexo printing press machine, cash register paper roll printing machine, POS roll thermal till roll flexo printing mahcine
