Stretch film slitting machinery

Share to:

Strecth Film Slitter Rewinder(Auto Slitting)

PPD-SFASR500

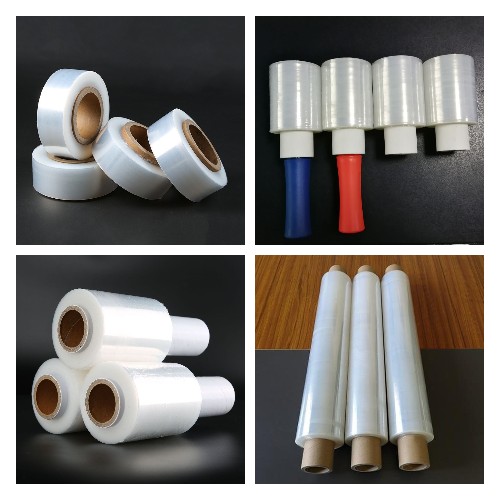

Strecth film slitter rewinder(auto slitting) is our latest model to slit rewind of stretch film,cling film etc.
Machine is equipped with two shaft system,once one roll is finished, it will automatically switch to another station for continuous rewinding.

Features:
1.Through the straight knife slitting system, the mother roll is slit into multiple narrow rolls according to the preset width.
2. Each station is equipped with an independent rewinding shaft, which is rewound through the air shaft to ensure uniform rewinding tightness and neat end faces.
3.Electrostatic adsorption system: The electrostatic adsorption system applies a controllable electrostatic field to the film through an electrostatic generator before rewinding, so that the wrapping film fits the core smoothly to avoid wrinkles and bubbles.

Main Data:

Name:Strecth Film Slitter Rewinder(Auto Slitting)

Model:PPD-SFASR500

Mother roll width:500mm

Mother roll ID:76mm

Mother roll OD:max400mm

Rewind roll width:500mm

Rewind roll OD:max150mm

Rewind roll ID:38/50/76mm

Speed:0-600m/min

Motor power:4kw

Voltage:220/380/415V,50Hz
