Slitting and rewinding machinery

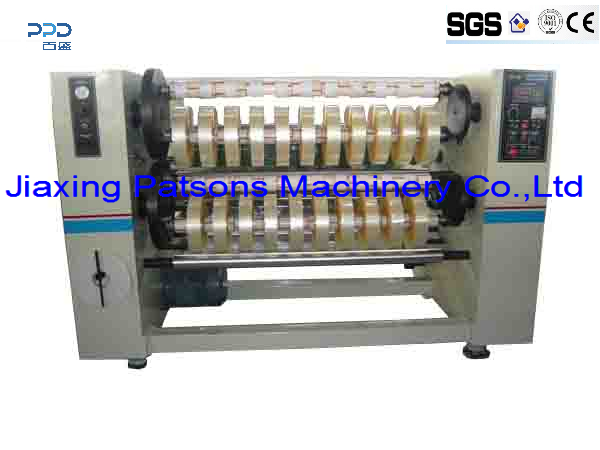

OPP adhesive tape slitting rewinding machine
PPD-210

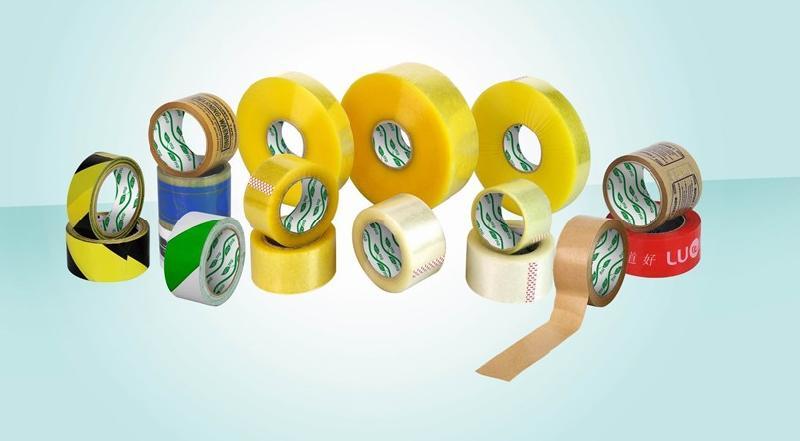

OPP adhesive tape slitting rewinding machine PPD-210 is an upgraded model for slitting and rewinding the BOPP OPP adhesive tape jumbo roll into small roll for sationary use,carton packing use etc.This machine is for a complete production line,include the main slitter rewinder,core loading machine,core cutting machine,and mini doctor rewinding machine.
It is designed with 4 shaft automatic changing,when the rewinding reach the length set,it will switch into the next term of slitting by another two shaft.
The latest Japanese tape slitting technology is adopted for the machine.It is warmly welcome in Europe,Mid East,USA etc.
The different widht of model is available.
Main data:
Material width 1650mm
Max. unload diameter Ф800mm
Max. rewinding diameter(2 shafts) Ф300mm
Max. rewinding diameter(4 shafts) Ф180mm
Slitting width 12-1280mm
Rewind paper core Ф3″
Slitting blade razor knife
Machine speed(max.) 180m/min
Power 22/380/415/450V
Frequency: 50/60Hz
Phase: 3Phase
Air compressor 5KG(customer self provide)
. Main equipment
Main drive motor (Teco AC7.5HP) 1set
Inverter(shilin) 1set
Rewinding shaft(aluminum alloy) 4pcs
Idler pulley(aluminum alloy) 3pcs
Drive empaistic roller( Teflon) 3pcs
Length counter ( 3 stage) 1set
Razor knife 200pcs
Tension control(5kg air pressure brake) 1set
Unwinding shaft(Ф3″standard steel shaft) 1set
Mold (12/19/25/37/50/75/100mm) 7sets
Toolbox 1set
Accessory Machine
