Paper roll slitting rewinding machine

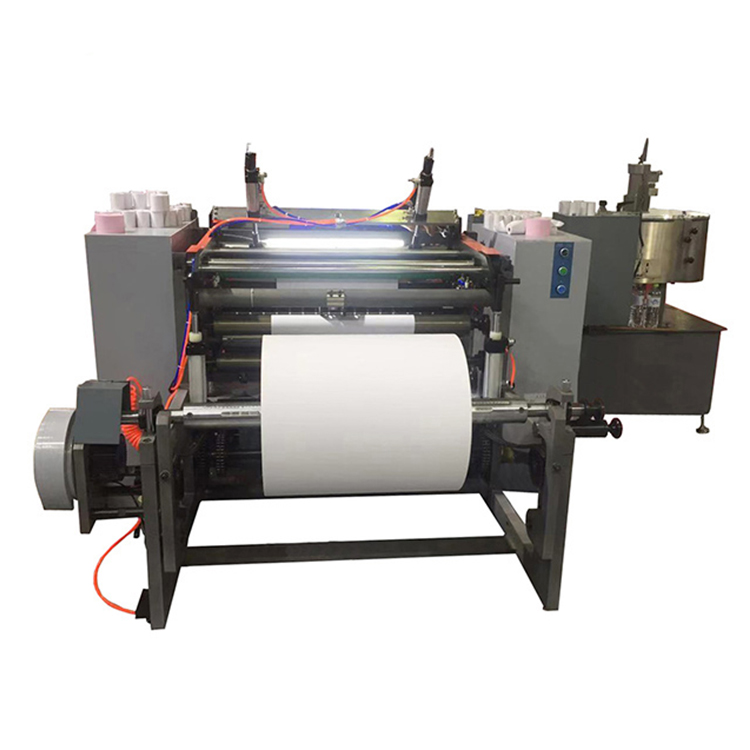

Thermal Paper Roll ATM Roll Cash Register Roll Slitting Rewinding Machinery
PPD-900
PPD-TPSR900 Thermal Paper Roll ATM Roll Cash Register Roll Slitting Rewinding MachineryPPD-TPSR thermal paper roll ATM roll cash register roll slitting rewinding machinery is completed with automatic core loading machine to co-work with main slitting rewidning machine for high speed production,it is high output with less labor involved for high lever automatiion.it is with auto raw material loading, automatic magnetic powder tension control, touch screen operation data setting and PLC program control, frequency control and full pneumatic operation, compact structure, adjustable paper roll, accurate cutting , reliable performance, simple operation and so on. It is suitable for thermal paper,includes cash register paper,adding roll,ecg roll, fax paper and ticketing roll cutting, etc. Meter setting can be set directly on the touch screen.
Key Work
PPD-TPSR900 Thermal Paper Roll ATM Roll Cash Register Roll Slitting Rewinding Machinery
Unwinding maximum width
800 / 900mm
Unwinding maximum diameter
1000mm
Minimum slitting width
>20mm
Mother roll core diameter
76mm
Maximum rewinding diameter
180mm
Product roll core diameter
12/18mm etc(8-50mm)
Maximum cutting speed
0-150m/min
Air supply
0.6Mpa
Weight
1500kg
Voltage
220/380/415/440/450v (option)
Note
Due to different reel specifications, the winding diameter is different. Special specification machine, single layer 110mm, double layer 55mm, three layers 45mm
ATM cash paper slitting machine, Lottery ticket paper slitting machine
