Aluminium foil rewinding machinery
Semi Automatic Aluminium Foil Tray Making Machine
PPD-45T

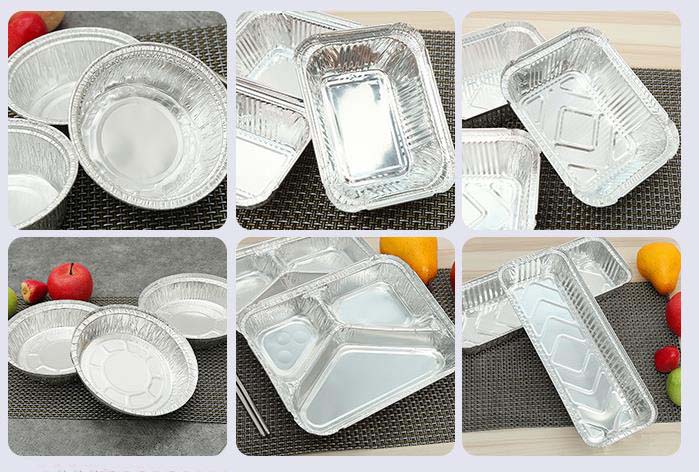

Semi automatic aluminium foil tray making machine is designed and developed model to produce of aluminum food containers, dishes,trays,plates etc.The main parts of this machine is include foil feeding machine,45T press machine ,punching mould,receiving table.
Features:
1..Save production cost:Only One person is needed to operate whole production line.
2.Application Fields :Suit of all aluminium foil products.
3.All specs are accept.We can make the production line accoring to customers' requirements.
Foil Feeding Machine:
| Nominal pressure | 450KN |
| Slide block stroke | 210mm |
| Slide stroke per minutes | 50-70pcs/min |
| Maximum die set height | 400mm |
| Slide bottom size | 430X340mm |
| Stemhole size | Φ60mm* 65mm |
| Bolster surface size | 900*780mm |
| Total power | 5.5KW |
| Weight | 4500kgs |
| Machine dimension | 2000*1300*900mm |
Press Machine:
| Pressure | 450KN |
| Body work plate hole dimension | 300*300mm |
| Stroke time | 60-100 times/min |
| Stroke height | 180mm |
| Work plate thickness | 50mm -100mm |
| Max. die Installation height | 390mm |
| Dimension of slide block bottom, size of handle hole | 320*145mm |
| The distance from the center of slice to the body | 340 mm |
| The height adjustment for die | 80 mm |
| Die handle hole dimension | 50*60 mm |
| Work plate dimension | 660*1000 mm |
| Dimension | 1915*1280*2500mm (L*W*H) |
| Power | 5.5kw |
| Voltage | 380v,50hz,3ph |
