Semi auto aluminium foil roll perforation rewinder

PPD-AFRP600

Semi auto aluminium foil roll perforation rewinder is designed for catering the demand of our buyer who has the request for saving daily aluminium foil roll consumption.

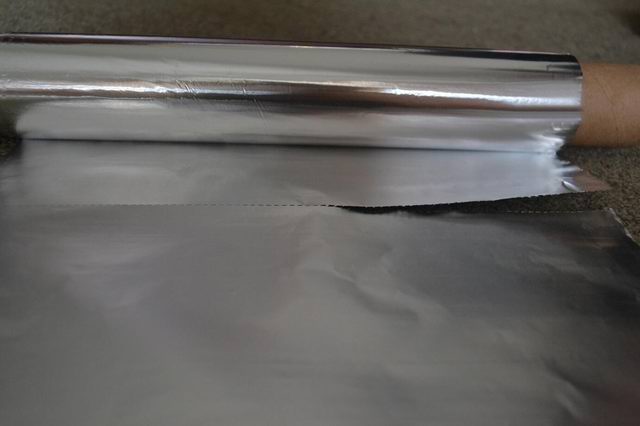

This model is with perforation line for easy tear off when use the roll to cover the food plate,it can save the wastage during cocking,baking,BBQ etc.
The sheet size can cover the plate as per different requirement size,it can save the aluminium foil roll box cutting blade to save the cost in a way to improve the selling point and advantage.
Machine adopts smei auto dual shaft model for rapid change of the paper core when one roll is finished rewinding,it can improve the production speed than single shaft.
Imported brand of PLC+Touch screen is standard comply on this model,it is very simple for operation,less skilled operator can work with this model.
Technical data:
Material:house foil roll
Master roll total width:200-600mm
Master roll core ID:3/6''
Master roll max OD:600mm
Rewinding roll total width:200-600mm
Rewinding roll ID:30/35/38/40mm option
Rewinding roll length:2-600 meters
Design Speed:600rpm/min
Voltage:220/380/415/450v
Total weight:1000kg



VIDEO DEMOSTRATION:

Semi auto aluminium foil roll perforation rewinder, aluminium house foil roll dotting line rewinder, aluminium foil roll production machine with perforation easy tear off
