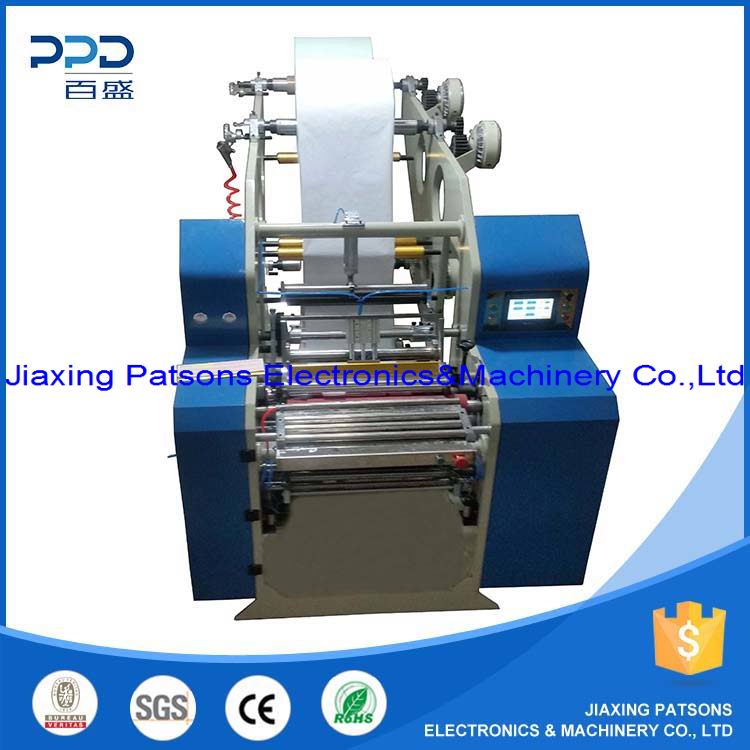

3 ply carbonless paper roll slitter rewinder

PPD-3PARW500

3 ply carbonless paper roll slitter rewinder is mainly design for NCR carbon-less paper roll,invoice roll slitting rewinding with 2ply max 3 ply.Ideal for NCR/Carbonless roll for 3 ply,2ply,and also multi-functional for single ply of thermal roll ATM/POS/FAX/,cash roll,ECG roll,Plotter roll,Small Thermal Rolls,bond roll etc Slitting&Rewinding.
Production complete With Paper jumbo roll lift(crane) for easy load the jumbo roll.
Auto Loading of Re-wind paper feeding into the Rewinding station,auto unloading when product is ready from rewinding station.
Imported World class PLC programe Control/Touch Color Screen,Auto control of magnetic powder break system,Automatic tensioner control,It is compact,Steady for performing,Easy for operation,High production speed.
Machine pass CE certificate and ROHS certificate for Europe market safety standard.
Our company pass BV and SGS audited supplier as 3rd party audited supplier.

BRIEF TECHNICAL DATA:

Model:PPD-3RW500
Maximum Width : 500 mm or option
Maximum of ply:3ply
Maximum Mother Reel Dia : 700 mm
Slitting Width (Standard) :30-max width
Maximum Rewind Diameter : 180mm diameter
Rewind Core Diameter : 13,15,22mm - Option
Cutting Speed : 168 M / per minute
Machine Overall Dimension :1600x1500x1600mm
Nett Weight of Machinery : 1.85 M/Ton
Power Voltage : 220//240/380/415/450Voltage
Frequency:50&60Hz(Option)
Total Power : 6.2kw (kilowatt)

Note:2 ply model is available,different width acceptable.

Video Presentation:



3 ply carbonless paper roll slitter rewinder, NCR paper roll slitting rewinding machine, carbon-less paper invoice paper roll cutting machine
