Aluminium foil rewinding machinery
Auto Aluminium foil rewinding machine
PPD-CG450

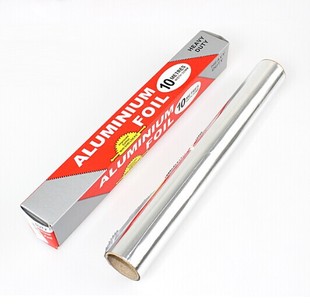

Auto Aluminium foil rewinding machine PPD-CG450 is an ideal model for high speed automatic production machine for aluminium foil kitchen roll,house foil roll etc.The machine is with latest design for non-stop operation during changing the paper core,it can improve the production rate to compare with semi auto model.
Machine is HMI PLC hub design to coordinate with outer LCD touch screen for very simple operation.
Our company is SGS and BV audited supplier for The system of production line,all the facility reach their standard.
Machine pass the CE certificate,and ROHS certificate for Europe Union requirement for Safety and ECO friendly.
Main profile:
Raw material:Aluminium foil
Parent roll maximum width:300/450mm
Parent roll inner core diameter:3/6''
Parent roll outer diameter:600mm
Rewinding roll width:300/450mm
Rewinding roll inner core diameter:25/35/38/40mm etc
Rewinding roll length:2/3/5/50m etc
Design speed:250m/minute
Total power:3kw
Voltage:220/380/415/450v
Air supply:0.2Mpa
Video Presentation:
Aluminium foil rewinding machine, house foil rewinding machine, aluminium foil winding machine
