Full-Servo Controlled Automatic 5 Shaft Cling Film Perforation Rewinder
PPD-5SCPR300
Full-servo controlled automatic 5 shaft food cling wrap perforation rewinder adopts full servo control,5 shaft exchange,infinitely improves the working efficiency.
It works with touch screen and PLC control,together with inverter control for simple operation.
Features:
1.The tension of jumbo roll is controlled by servo motor,machine running more stable.
2.High speed and high efficient, maximum at 700m/min,it can rewind 10-12 rolls for length 30m rolls per minute.
2.Automatic perforation function,the product roll is with dotting line to easy tear off.

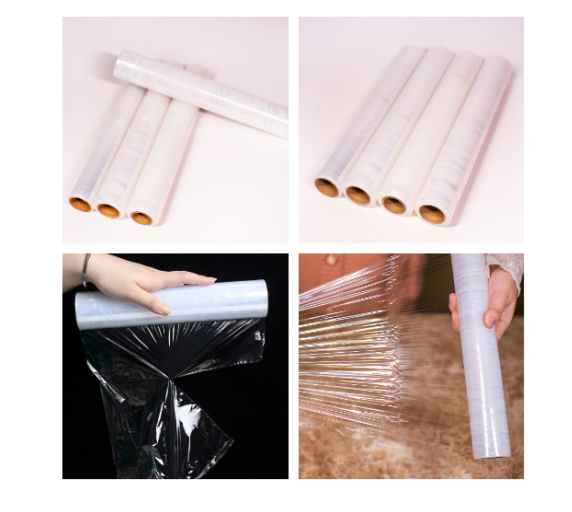

3.Suitable film:PVC cling film,PE cling film,food PE stretch film etc.
5 Turret Cling Film Rewinder With Dotting Line, 5 Turret PVC Cling Film Perforation Rewinding Machine
It works with touch screen and PLC control,together with inverter control for simple operation.
Features:
1.The tension of jumbo roll is controlled by servo motor,machine running more stable.
2.High speed and high efficient, maximum at 700m/min,it can rewind 10-12 rolls for length 30m rolls per minute.
2.Automatic perforation function,the product roll is with dotting line to easy tear off.
3.Suitable film:PVC cling film,PE cling film,food PE stretch film etc.
Main Data：
Name:Full-Servo Controlled Automatic 5 Shaft Cling Film Perforation Rewinder
Model:PPD-5SCPR300
Mother roll width:300mm
Mother roll outer diameter:OD:max 400mm
Rewind roll width:300mm
Rewind roll inner diameter:30/35/38mm option
Rewind roll length:max150m or as customized
Design speed:max700m/min
Voltage:220/380/415V,50Hz (option)
Packing Size:1550*1490*1710mm
Weight:980kg
