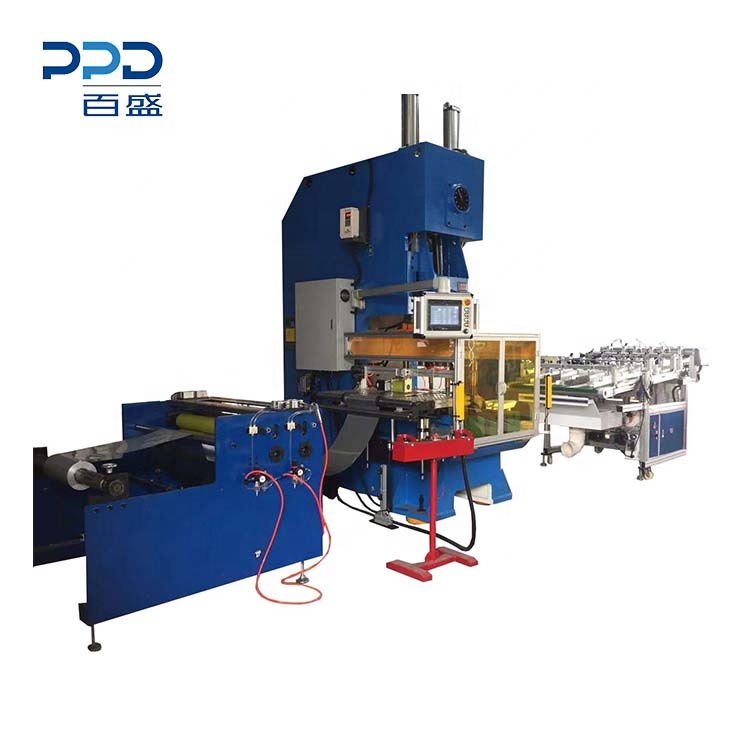

Aluminium Foil Container Machine

Fully automatic kitchen foil tray making is a fully auto production line for production of aluminium foil container,aluminium foil tray,aluminium foil dish,aluminium foil plates etc foil products.

The complete production line is consist of 4 parts, aluminium foil feeding machine,high accurary press machine,aluminium foil punching mould and auto stacker.

 Fully Automatic Kitchen Foil Tray Making Machine

                                                            Model:PPD-A63T



I.Aluminium Foil Feeding Machine:

Lubrication function	Automatic equal oil coating design                     with no weinkle trouble
Max feeding width of aluminium foil roll	880mm
Max diameter of aluminium foil roll	1000mm
Effective length of feeding roll	900mm
Aluminium foil roll inner diameter	76mm or 152mm option
Tension control	Electric Magnetic Brake 100NM
Feeding system	Servo System
Feeding speed	0-500m/min
Feeding length&precision	+0.1 mm
Power	1.5kw

II.High Accuracy Press:



Press Model	63T
Nominal pressure	630KN
Slide block stroke	180-260mm
Slide stroke speed	35-90pcs/min
Range of mould height	340-420mm
Max size of mould	1100x900mm
Weight	8800kgs
Power	11kw
Dimension	1500x2200x3500mm





III.Punching Mould

Aluminium foil thickness	0.03-0.35mm
Aluminium foil container shape	Round,square,heart etc
Aluminium foil container color	Silver,gold,red etc
Aluminium foil container size	as customized





IV.Auto Stacker:



Model	AS-800
Lane quantity	3lanes
Belt width	900mm
Belt height	850-1200mm
Min container dimension	120*120mm
Max container dimensions Top out size(LxW)	800*400mm(1 lane) 400*400mm(2 lanes) 250x400mm(3 lanes)
Max height of stacking	400mm
Power	1.2kw

Fully Automatic Kitchen Foil Tray Making Machine, aluminum foil BBQ tray dish container machine, restaurant take away food container bowl making machine
