Stretch film slitting machinery

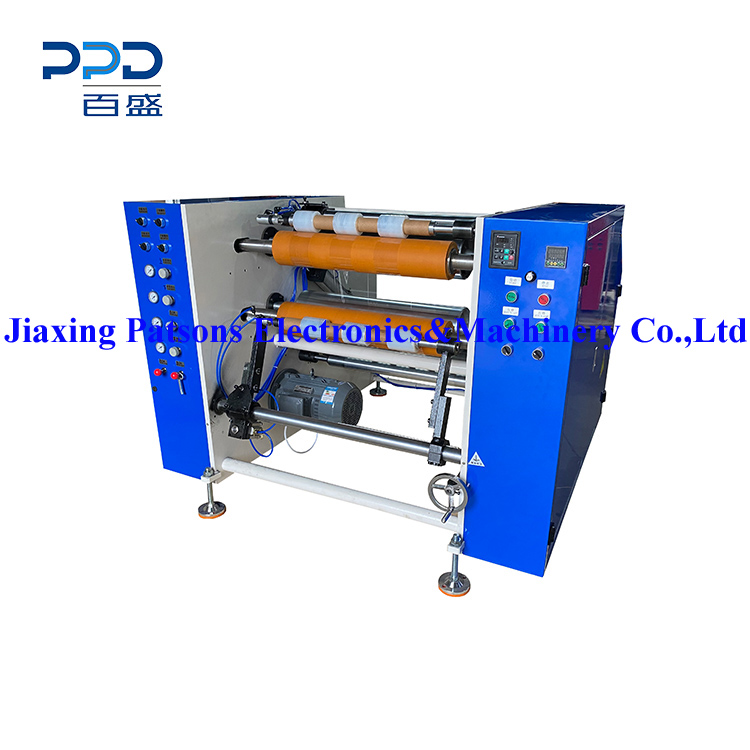

New Model PE Stretch Film Slitter Rewinder
PPD-NSFS500
New Model PE Stretch Film Slitter RewinderNew model PE stretch film slitter rewinder is our latest design for slitting and rewinding of stretch film roll.
It can rewind big jumbo roll into small roll and both do the same and different width size. Through the slitting/rewinding channel , wrong layer can be corrected,the appearance of the coil flatness is enhanced.
Features:
1.Change size easier than traditional slitter rewinder machine,and different width,length can be set according to buyers' individual needs.
2.Auto meter counting.
3.Different size of rewind roll core diameter can be choose,like 1.5inch,2inch,3inch
4.3inch size adopts air shaft rewind,1.5/2 inch size adopt plain shaft rewind.
Main Data:
Name:New Model PE Stretch Film Slitter Rewinder
Model:PPD-NSFS500
Jumbo roll width：500m
Jumbo roll weight: max50kg
Jumbo roll inner core diameter:3inch(76mm)
Rewind roll width:50 to 500mm
Rewind roll inner core diameter:1.5/2/3inch(38/50/76mm)
Rewind roll outer core diameter:max180mm
Speed:max 650m/min
Power:1.7kw
Voltage:220/380/415V option
