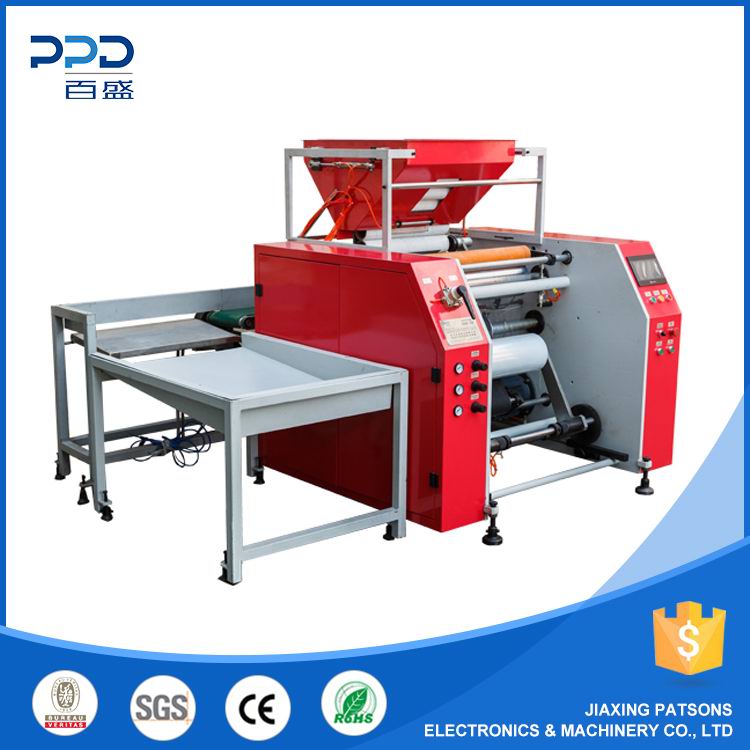

Automatic 3 shaft cling wrap perforation rewinder

PPD-SHACR450

Automatic 3 shaft cling wrap rewinder is ideal for designed for high speed production of food cling film roll.
By 3 shaft automatic changing,it can improve the production speed than the 1 shaft model.
The cutting speed of the end roll is faster too.

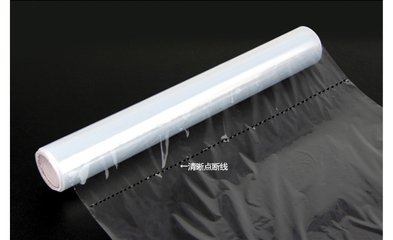

As option,this model can make the perforation line/dot line for easy tear off the cling film sheet instead of the cutting blade on the box,in a way,this is to save the user cost as a selling point.
The imported brand of PLC plus touch screen can ensure the heavy duty daily production for very easy operation,user friendly.
Machine pass CE safety certificate and ROHS Eco friendly certificate for Europe market.

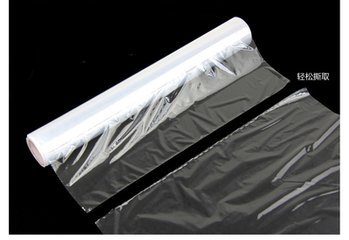

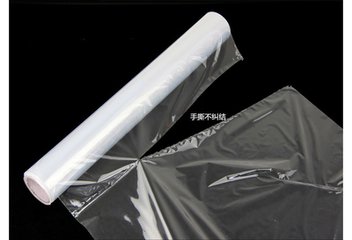

Machine is ideal working with PE cling film,PE food stretch wrap film,PVC food cling wrap,and PE stretch film.
Main technical parameters:
Material:PE Cling film/PVC cling film
Mother roll width:max 500mm
Mother roll inner core diameter:3inch
Mother roll outer core diameter:500mm
Baby roll width:max 500mm
Baby roll inner core diameter:25/35/38/76mm etc
Baby roll length:20/30/90/150/300/600meter etc
Speed:max 1500meter/minute
Power:4 kw
Voltage:220/380/415/450v
Pneumatic consumption:0.3Mpa

Video Presentation:



Automatic 3 shaft cling wrap rewinder, Fully auto 3 shaft food cling film rewinding machine, 3 turret food stretch wrap rewinding machine
